ASP Series
Astrowave Pool
High-efficiency Water Pump For Pools & Spa

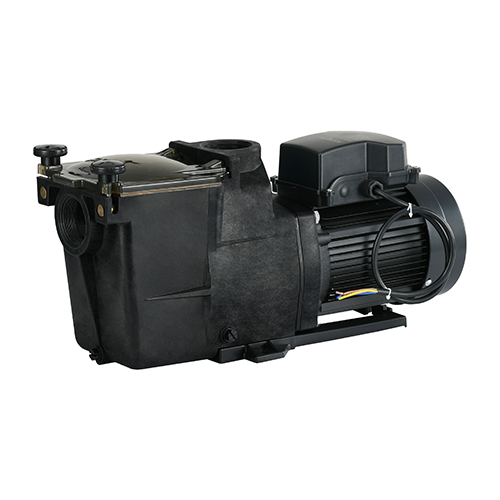

The ASP Series is an engineered hydraulic pool pump designed for residential and commercial aquatic facilities, featuring a sealed, air-cooled aluminum-fin motor. This product series is available in 110V, 220V, and 380V voltage configurations to support different electrical standards and operational requirements. Constructed with advanced windings and durable polymer components, this sand filter pump maintains reliable performance with a motor insulation class of B. The design incorporates an external heat sink and built-in thermal protection to ensure operational longevity in demanding environments. The inclusion of a large-capacity square debris filter and a transparent bolt-type lid makes this pool filtration pump a practical choice for facilities requiring low maintenance. It comes equipped with both imperial and metric unions, supporting 1.5-inch/50mm or 2-inch/63mm piping systems to facilitate seamless integration into various infrastructure layouts.This high-performance pump series is specifically engineered for global pool equipment wholesale distributors, regional dealers, and professional aquatic project contractors.
| Features | |
|---|---|
| Pump Strainer Housing Material: | Corrosion-Resistant Thermoplastic |
| Speed Control Type: | Constant Speed |
| Dual Voltage Supported: | NO |
| Integrated Timer Supported: | Optional |
| Motor Casing: | Premium Die-Cast Aluminum Alloy with Enhanced Heat Dissipation |
| Motor Winding: | High-Conductivity Copper Windings |

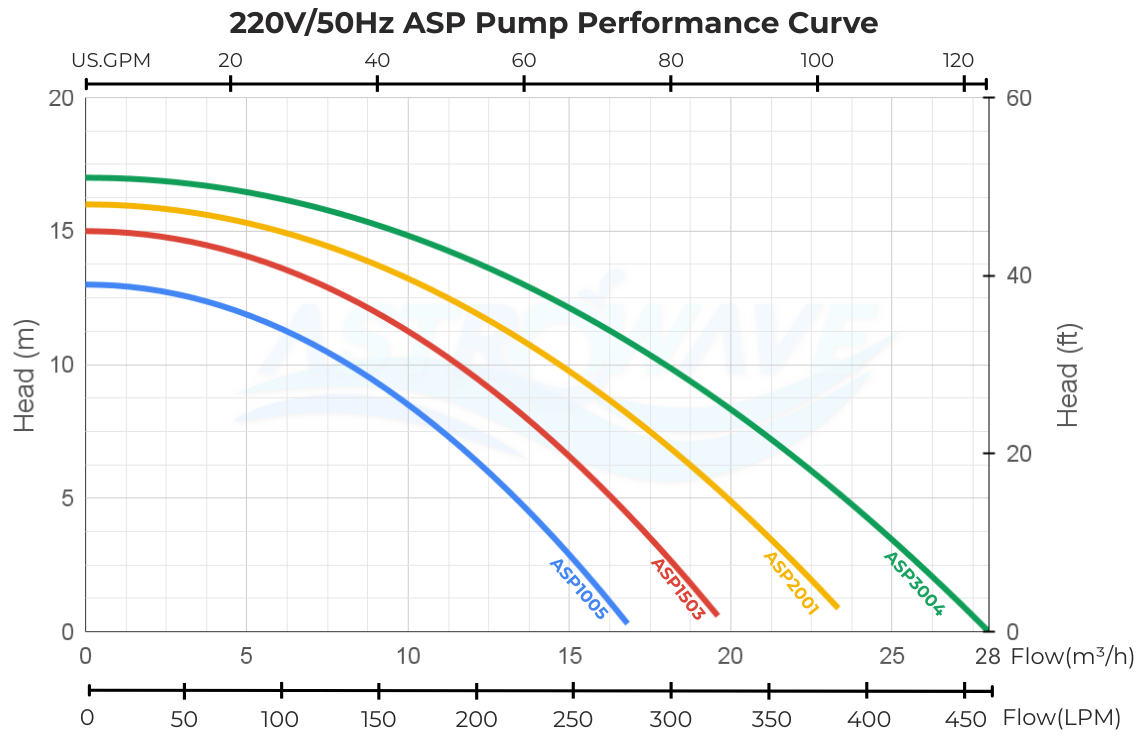

| Model | Power (KW/HP) | Voltage | Max.Flow Rate | Max. Head | |||
|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m | ft | |||
| ASP1005 | 0.75 / 1.0 | 110V/220V | 17 | 283 | 75 | 13 | 43 |
| ASP1503 | 1.1 / 1.5 | 110V/220V | 20 | 333 | 88 | 15 | 49 |
| ASP2001 | 1.5 / 2.0 | 110V/220V/380V | 24 | 400 | 106 | 16 | 52 |
| ASP3004 | 2.2 / 3.0 | 110V/220V/380V | 28 | 467 | 123 | 17 | 56 |

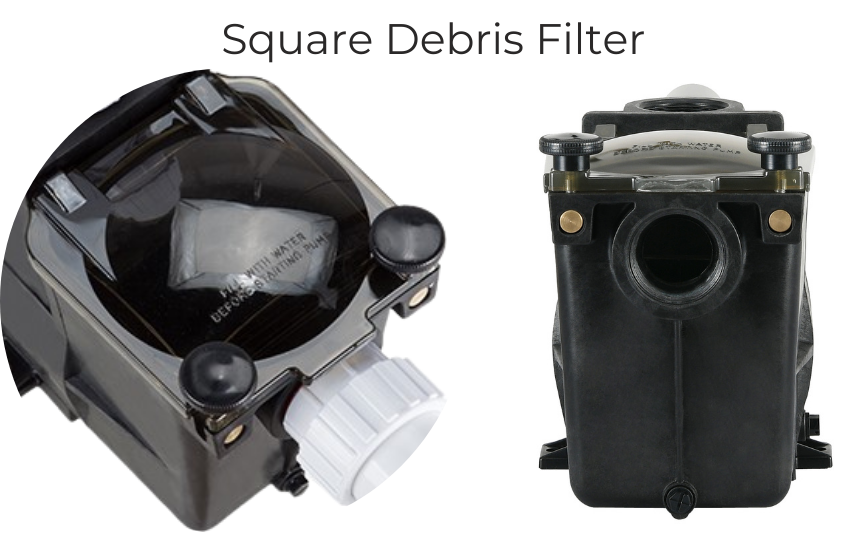

The system is designed as a self priming pool pump featuring a square debris filter and a large-capacity strainer to ensure consistent flow and reduced maintenance frequency.
The ASP3004 model operates as a high flow pool pump capable of delivering a maximum flow rate of 28 m3/h and a maximum head of 17 meters.
Yes, this pool filter pump is compatible with commercial filtration setups and includes both 50mm and 63mm union connections for versatile installation.
Models are available in 110V/220V dual-voltage or 110V/220V/380V triple-voltage configurations depending on the specific model power rating ranging from 0.75 KW to 2.2 KW.

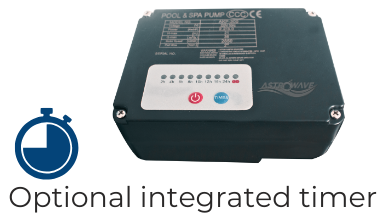

An optional integrated timer is available for this series to provide flexible control over daily operation cycles and improve overall energy efficiency.
We are a direct swimming pool pump manufacturer in China. Astrowave Pool operates its own production facilities with a strict in-house quality control system. You are always welcome to visit our factory in person, or we can arrange a real-time WhatsApp video tour of our workshop for a convenient remote inspection.
Yes, we provide comprehensive OEM and ODM services tailored for our global B2B partners. From custom product colors and branded logos to specific carton packaging designs, our flexible production lines can accommodate your needs. As an experienced swimming pool equipment manufacturer, we focus on delivering consistent quality to help your business succeed in local markets.
As a trusted swimming pool equipment manufacturer in China, Astrowave Pool Products specializes in complete filtration and circulation systems. We focus on producing high-demand commercial and residential core products, including:
With over 22 years of export experience, we proudly supply premium pool equipment to distributors, pool builders, and dealers worldwide, including the Middle East, India, Southeast Asia, Africa, the Americas, and Southern Europe.
