VTL Series
Astrowave Pool

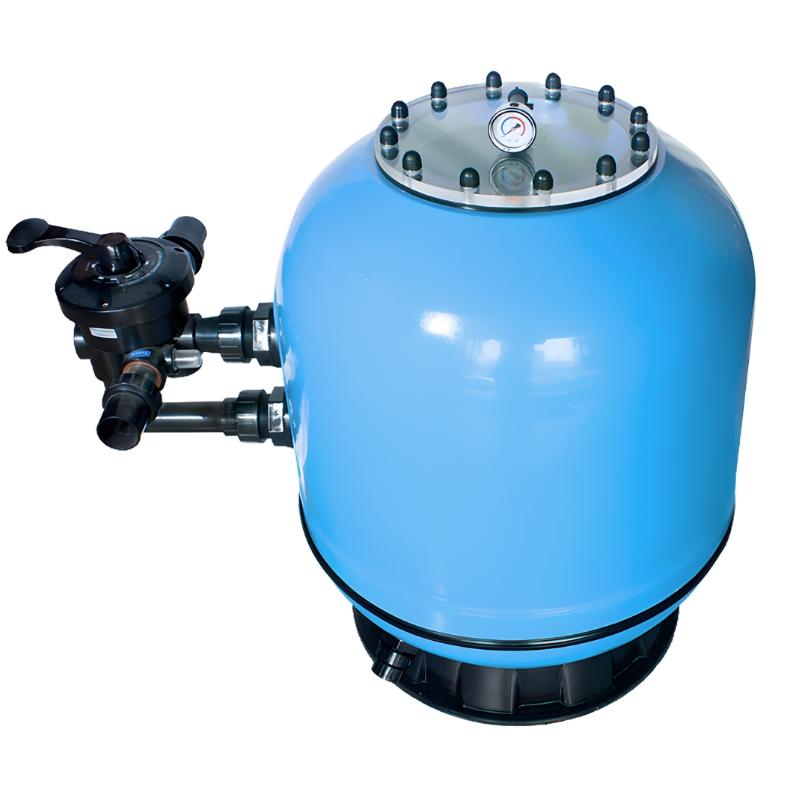

Large Clear-View Lid Design Gel-coated Fiberglass Filter

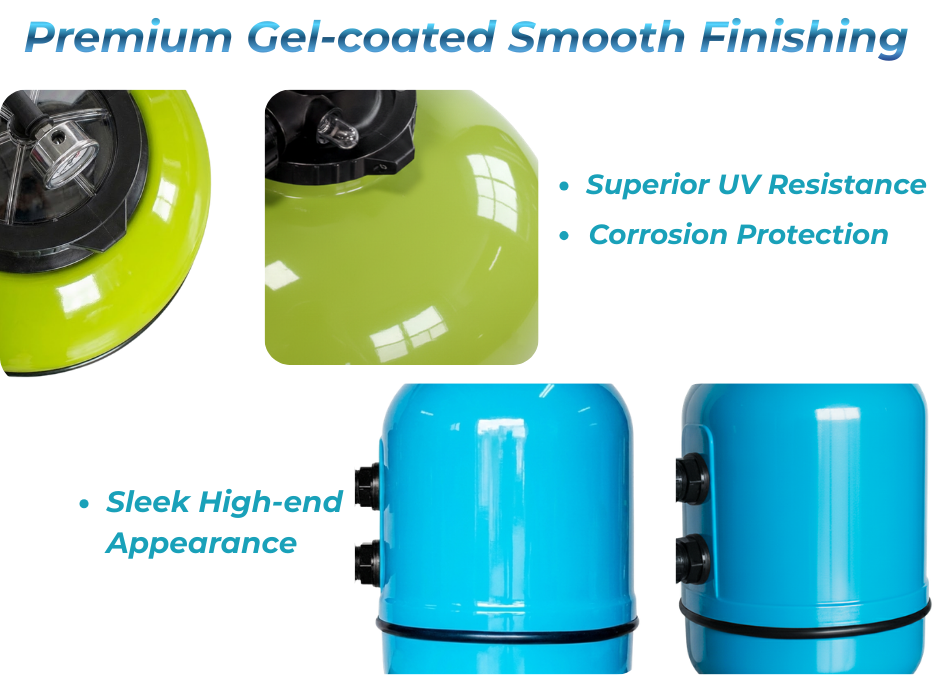

The VTL Series Large Transparent Lid Filter represents an advanced engineering upgrade for aquatic maintenance systems. Designed with a 30mm thickness large clear-view lid, this clear view lid filter allows for effortless visual inspection of the internal media bed without the need to disrupt the filtration cycle. Constructed using non-corrosive gelcoat materials, the tank offers superior surface quality and enhanced UV resistance compared to traditional bobbin wound models. Each gel coated fiberglass filter is specifically designed to withstand harsh outdoor conditions while maintaining a refined aesthetic and performance stability over long-term operation. This industrial-grade fiberglass sand filter integrates an air release valve for the quick removal of trapped air and utilizes a side-mount configuration for streamlined piping. The system is engineered for both residential and commercial applications where high-performance particle removal is a critical requirement.this Transparent Cover Pool Sand Filter delivers precise operational control and superior water clarity for demanding B2B wholesale integrators.
| Features | |
|---|---|
| Main Material: | Gel-coated Fiberglass |
| Factory Testing Pressure: | 4.0 bar / 58 psi |
| Maximum Working Pressure: | 36 psi / 2.5 bar |
| Highest Temperature Resistance: | 43°C (109°F) |
| Selector Valve Mounting Position: | Side-Mounted |
| Warranty: | 10 years body warranty |
| Suggested Filter Medium Size: | 0.5 - 0.8 mm |
| Model | Valve Model (Union Connection) | Valve Connection | Max.Flow Rate | Filter Area | Sand (kg) | |||
|---|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m² | ft² | ||||
| VTL525 | MPV03 | 1.5" / 50mm | 12 | 200 | 53 | 0.20 | 2.15 | 88 |
| VTL650 | MPV03 | 1.5" / 50mm | 17 | 283 | 75 | 0.33 | 3.55 | 158 |
| VTL750 | MPV04 | 2" / 63mm | 22 | 367 | 97 | 0.44 | 4.74 | 260 |
| VTL900 | MPV04 | 2" / 63mm | 32 | 533 | 141 | 0.64 | 6.89 | 422 |

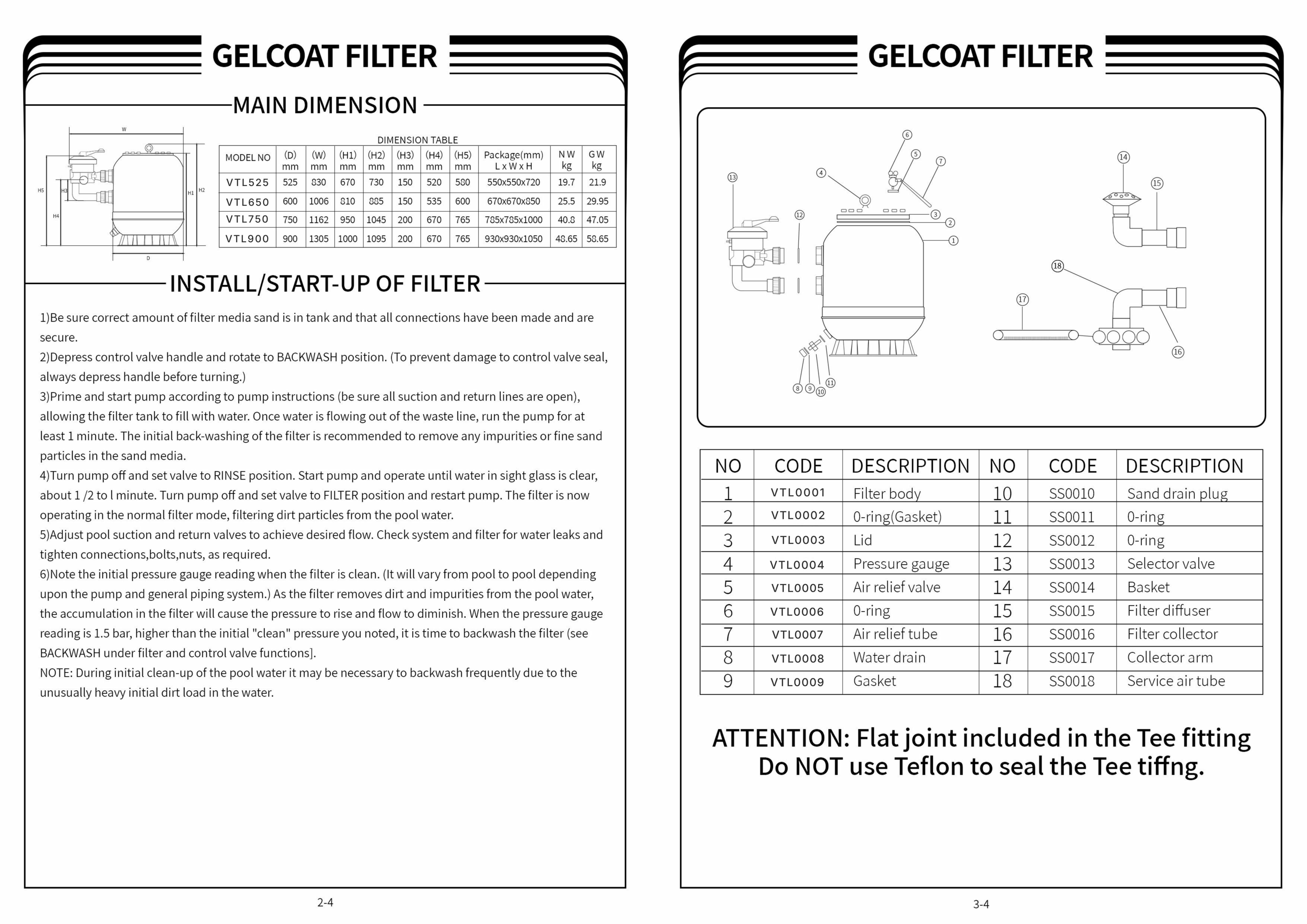

| Model | (D) mm | (W) mm | (H1) mm | (H2) mm | (H3) mm | (H4) mm | (H5) mm | Package (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| GB(mm) | ANSI | ||||||||
| VTL525 | 525 | 22" | 830 | 670 | 730 | 150 | 520 | 580 | 550 x 550 x 700 |
| VTL650 | 650 | 26" | 1006 | 810 | 885 | 150 | 535 | 600 | 670 x 670 x 850 |
| VTL750 | 750 | 30" | 1140 | 960 | 1020 | 200 | 610 | 685 | 770 x 770 x 990 |
| VTL900 | 900 | 36" | 1290 | 1020 | 1080 | 200 | 610 | 685 | 920 x 920 x 1080 |

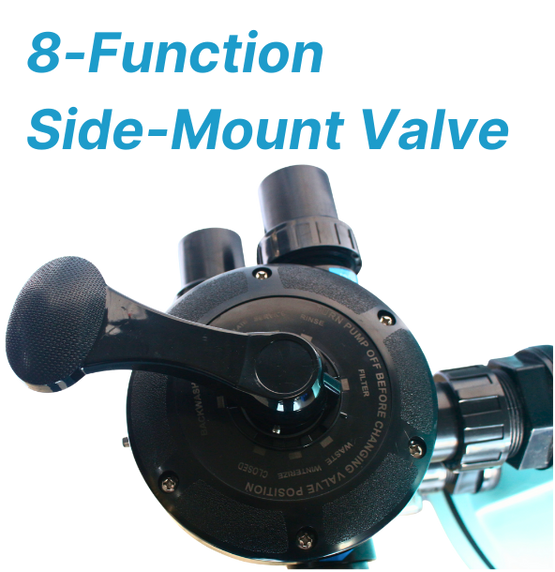

A side-mounted pool filter allows for easier access to the transparent lid for inspection and maintenance, as the valve is positioned to the side of the tank body.

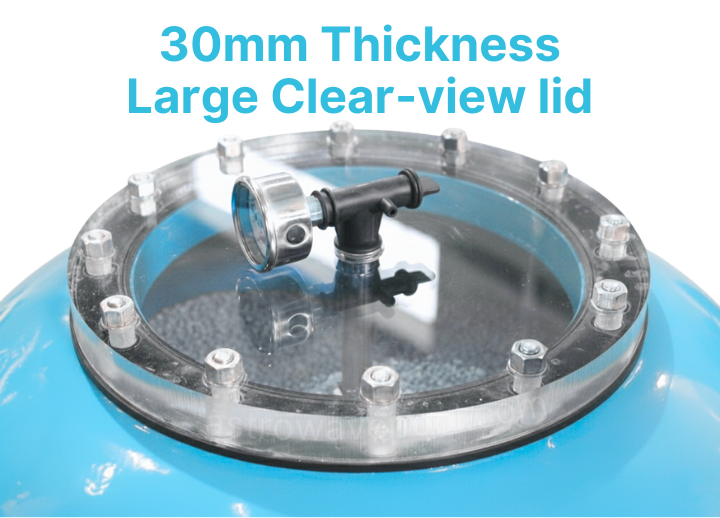

The unit features a large clear-view lid with a 30mm thickness, engineered for high pressure resistance and clear visibility of the internal filtration media.
For optimal results, the suggested size of media is 0.5-0.8mm, which works in conjunction with the internal media filter laterals for efficient particle removal.
The tank is designed to operate safely with a maximum water temperature of 43°C (109°F), making it suitable for standard pool and spa applications.
The system includes an integrated air release valve at the top of the viewing window for the quick and safe removal of any trapped air during startup or operation.
