KTP Series Energy Efficient Pool Filter Pump

Q: Are you a manufacturer or a trading company?

We are a 100% direct pool product China manufacturer with our own production facilities and strict in-house quality control system. Customers are always welcome to visit our factory, and we also support real-time workshop tours via WhatsApp for convenient remote inspection.

Q: Do you support OEM and ODM customization for bulk orders?

Yes, as an experienced swimming pool equipment manufacturer, we provide full OEM and ODM services for bulk orders. Customization options include product color, branding/logo, and carton packaging design. As a reliable pool pump and filter manufacturer, we ensure flexible production and consistent quality to meet different market requirements.

Q: What pool equipment does Astrowave Pool manufacture, and which markets do you export to?

Astrowave Pool specializes in a comprehensive range of pool filtration and circulation systems.Our core product lines include pool sand filters such as gelcoat fiberglass sand filters and bobbin-wound fiberglass media filters for pool filtration, as well as hydraulic pool pumps including inverter pool pumps, smart pool pumps, dual speed pool pumps, and dual voltage pool pumps. We also produce underwater pool lighting and plastic pool fittings such as skimmers and hydrotherapy jets, supporting a complete pool system solution.With over 22 years of pool product export experience, we are a reliable pool equipment supplier trusted by pool industry buyers worldwide including the Middle East, India, Southeast Asia, Africa, the United States, Mexico, and Southern Europe.

The KTP Series represents a robust circulation solution engineered for residential and commercial aquatic facilities, seamlessly integrating with any standard sand filter pump setup. Designed with an advanced asynchronous two-pole motor and a durable aluminum housing, this equipment minimizes operational vibration while maintaining a low-noise profile during continuous daily use.

This product series is available in Single-Speed, Dual-Voltage, and Dual-Speed configurations to support different electrical standards and operational requirements. The dedicated dual speed pool pump models allow facilities to instantly shift between high-output and economy modes, offering smarter and more cost-effective water management for varying circulation demands.

Built with a precision mechanical seal and optimized hydraulics, the unit delivers strong head capabilities and consistent hydrodynamic efficiency. Designed to function effectively as a high-performance above ground pool pump or commercial circulation driver, it safely handles maximum water temperatures up to 45°C while maintaining reliable thermal stability through an internal heat sink.

Availability:

Quantity:



Inquire Add to Basket

Model:
KTP Series
Brand:
Astrowave Pool

Product Description

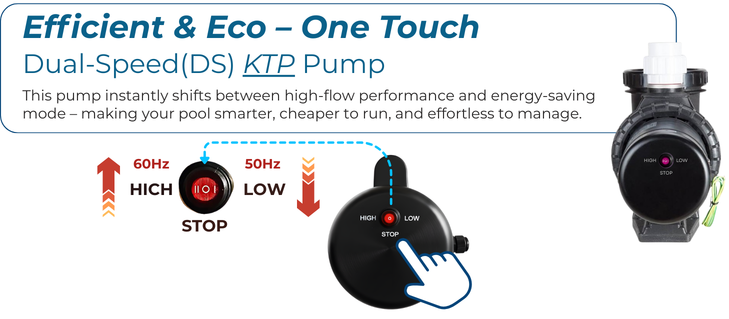

Efficient & Eco – One Touch,Dual Speed

Product Description

The KTP Series represents a robust circulation solution engineered for residential and commercial aquatic facilities, seamlessly integrating with any standard sand filter pump setup. Designed with an advanced asynchronous two-pole motor and a durable aluminum housing, this equipment minimizes operational vibration while maintaining a low-noise profile during continuous daily use. This product series is available in Single-Speed, Dual-Voltage, and Dual-Speed configurations to support different electrical standards and operational requirements. The dedicated dual speed pool pump models allow facilities to instantly shift between high-output and economy modes, offering smarter and more cost-effective water management for varying circulation demands. Built with a precision mechanical seal and optimized hydraulics, the unit delivers strong head capabilities and consistent hydrodynamic efficiency. Designed to function effectively as a high-performance above ground pool pump or commercial circulation driver, it safely handles maximum water temperatures up to 45°C while maintaining reliable thermal stability through an internal heat sink.

This premium pool pump is explicitly developed for global export, targeting commercial project buyers and equipment dealers.

Product Features

Flexible Model Configuration: Available in Constant-Speed, Dual-Voltage, and Dual-Speed versions to support different installation and operational requirements.
One-Touch Dual Modes: The DS models operate as an dual speed pool and spa pump, featuring a manual onboard quick-switch button for seamless 50Hz/60Hz conversion, enabling both energy-saving and high-performance filtration modes.
Optimized Hydraulics & Sealing: Features a precision mechanical seal and an advanced motor design enclosed within an aluminum housing for durable, low-vibration functionality.
Simplified Maintenance Access: Built-in debris filter combined with a transparent ring-lock lid ensures easy inspection and cleaning for this energy saving pool pump system.
Comprehensive Thermal Management: Engineered with internal heat sinks, built-in thermal protection, and Class B motor insulation to maintain safe operation in elevated temperature conditions.
Universal Piping Integration: Includes both imperial and metric unions, accommodating 2-inch (63 mm) or 1.5-inch (50 mm) plumbing connections for adaptable installation protocols.

Features
Pump Strainer Housing Material:	Corrosion-Resistant Thermoplastic
Speed Control Type:	Constant Speed / Dual Speed
Dual Voltage Model Supported:	Yes
Integrated Timer Supported:	NO
Motor Casing:	Premium Die-Cast Aluminum Alloy with Enhanced Heat Dissipation
Motor Winding:	High-Conductivity Copper Windings

Product Specifications

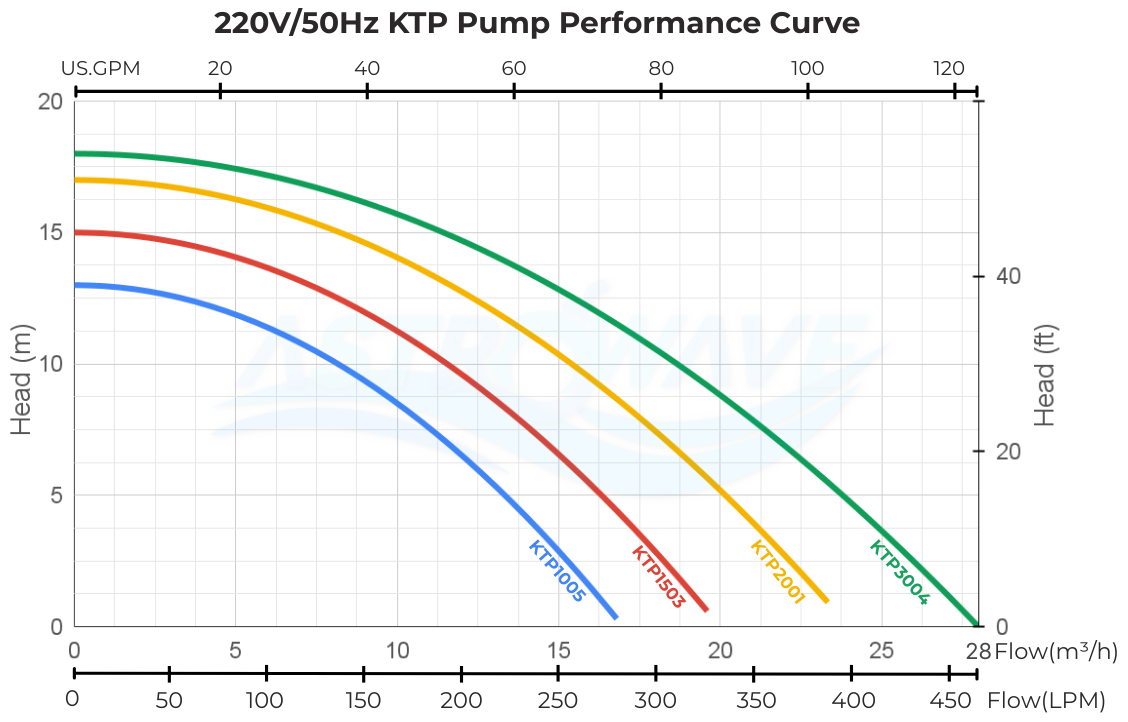

Constant-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	Max.Flow Rate			Max. Head
Constant-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	m³/h	LPM	GPM	m	ft
KTP1005	0.75/1.0	Fixed 110V /220V	50 / 60Hz	50Hz-2850 / 60Hz-3450	17	283	75	13	43
KTP1503	1.1/1.5	Fixed 110V /220V	50 / 60Hz	50Hz-2850 / 60Hz-3450	20	333	88	15	49
KTP2001	1.5/2.0	Fixed 110V /220V /380V	50 / 60Hz	50Hz-2850 / 60Hz-3450	24	400	106	17	56
KTP3004	2.2/3.0	Fixed 110V /220V /380V	50 / 60Hz	50Hz-2850 / 60Hz-3450	28	467	123	18	59

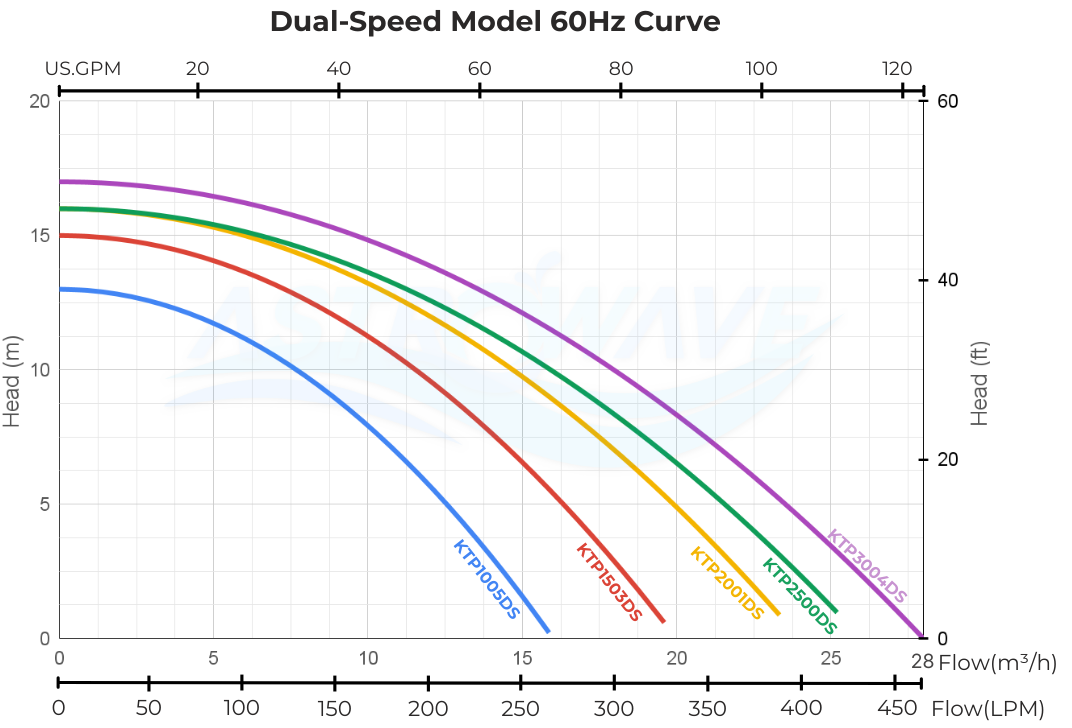

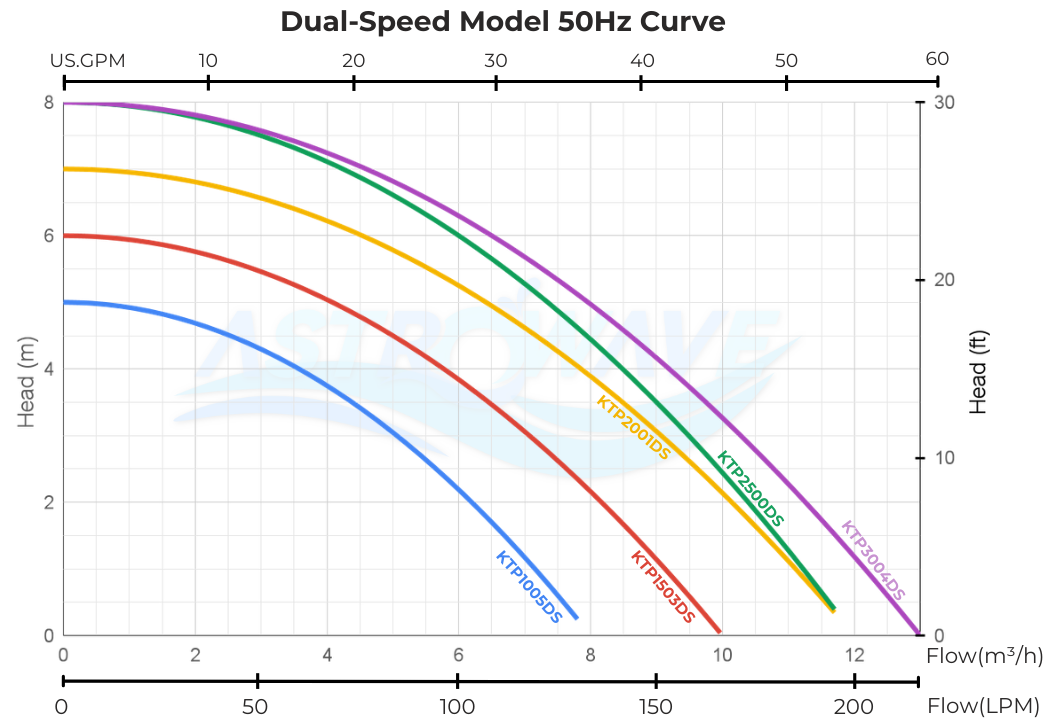

Dual-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	Max.Flow Rate			Max. Head
Dual-Speed Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	m³/h	LPM	GPM	m	ft
KTP1005DS	0.75 / 1.0	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	8 16	133 267	35 70	5 13	16 43
KTP1503DS	1.1 / 1.5	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	10 20	167 333	44 88	6 15	20 49
KTP2001DS	1.5 / 2.0	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	12 24	200 400	53 106	7 16	23 52
KTP2500DS	1.87 / 2.5	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	12 26	200 433	53 114	8 16	26 52
KTP3004DS	2.2 / 3.0	220V	Switchable 50 / 60Hz	50Hz:1725 60Hz:3450	13 28	217 467	57 123	8 17	26 56

Dual-Voltage Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	Max.Flow Rate			Max. Head
Dual-Voltage Model	Power (KW/HP)	Voltage	Speed	Motor Speed (rpm)	m³/h	LPM	GPM	m	ft
KTP1005DV	0.75/1.0	Selectable 110V /220V	60Hz	110V-2850 / 220V-3450	16	267	70	13	43
KTP1503DV	1.1/1.5	Selectable 110V /220V	60Hz	110V-2850 / 220V-3450	20	333	88	15	49
KTP2001DV	1.5/2.0	Selectable 110V /220V	60Hz	110V-2850 / 220V-3450	24	400	106	16	52
KTP3004DV	2.2/3.0	Selectable 110V /220V	60Hz	110V-2850 / 220V-3450	28	467	123	17	56

Dimensions

Application Areas

Municipal aquatic centers requiring a reliable in-ground pool pump for continuous high-volume daily water circulation and filtration.
Luxury resort swimming pools utilizing a high flow pool pump to maintain pristine water clarity across expansive guest facilities.
Commercial fitness center pools needing an efficient pool filter pump integration to handle heavy bather loads and stringent hygiene standards.
Hotel pool complexes demanding low-noise equipment installations to preserve a quiet environment in adjacent guest recreation areas.
Public recreation facilities implementing selectable voltage or dual-frequency systems to manage fluctuating seasonal water turnover requirements securely.

FAQ

Are you a manufacturer or a trading company?

We are a direct China OEM pool pump manufacturer. Astrowave Pool operates its own production facilities with a strict in-house quality control system. You are always welcome to visit our factory in person, or we can arrange a real-time WhatsApp video tour of our workshop for a convenient remote inspection.

Do you support OEM and ODM customization for bulk orders?

Yes, we provide comprehensive OEM and ODM services tailored for our global B2B partners. From custom product colors and branded logos to specific carton packaging designs, our flexible production lines can accommodate your needs. As an experienced swimming pool equipment manufacturer, we focus on delivering consistent quality to help your business succeed in local markets.

What pool equipment does Astrowave Pool manufacture, and which markets do you export to?

As a trusted China pool product manufacturer and supplier, Astrowave Pool Products specializes in complete filtration and circulation systems. We focus on producing high-demand commercial and residential core products, including:

Sand Filters: Gelcoat fiberglass and bobbin-wound fiberglass pool sand filters.
Pool Pumps: Inverter pool pumps, dual-speed, dual-voltage, and constant-speed models.
Pool Accessories: Underwater lighting, skimmers, and hydrotherapy jets.

With over 22 years of export experience, we proudly supply premium pool equipment to distributors, pool builders, and dealers worldwide, including the Middle East, India, Southeast Asia, Africa, the Americas, and Southern Europe.

What power ratings are available across the KTP series?

The series offers a range of power capacities depending on the specific model group, scaling up to a 3 hp pool pump configuration capable of delivering a maximum flow rate of 28 cubic meters per hour.

Does this equipment support different pipe sizes for installation?

Yes, all units include versatile imperial and metric unions, supporting both 2-inch (63 mm) and 1.5-inch (50 mm) connections, making it an adaptable pool pump replacement for existing plumbing frameworks.

How do the selectable voltage models operate?

Dual-Voltage models within the series feature a selectable 110V or 220V configuration operating exclusively at 60Hz, providing electrical adaptability for specific regional power infrastructures.

What are the primary structural materials used in the motor assembly?

The equipment utilizes an advanced motor design enclosed within a durable aluminum housing, featuring an internal heat sink and Class B motor insulation to withstand continuous operational demands.

What is the maximum operating water temperature for this equipment?

The system is structurally engineered with built-in thermal protection to process and circulate water with a maximum temperature threshold of 45°C safely.
