SKP Series
Astrowave Pool
Low Running Cost & Noise Level.

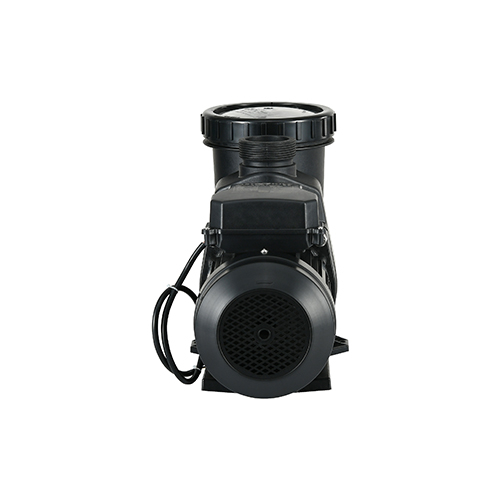

The SKP Series Super Kinetic Pump utilizes an advanced hydraulic design combined with durable, high-strength engineering plastics for reliable water treatment. This product series is available in 110V/220V/380V configurations to support different electrical standards and operational requirements. Incorporating a high-capacity strainer and transparent Ring-Lock lid, this high flow pool filter pump simplifies maintenance while ensuring consistent hydraulic performance. Engineered to maintain a low running cost and low noise level, the system includes an optional integrated timer for users who prefer minimal monitoring. Once the continuous running time is set, the energy efficient pool pump automatically shuts down when the target time is reached. The unit operates on a fixed speed profile, delivering 2850 rpm at 50Hz and 3450 rpm at 60Hz. Designed for both residential settings and larger aquatic facilities, the system is equipped with an asynchronous, two-pole motor featuring Class B insulation and an external heat sink. Built-in thermal protection and an IP54 waterproof rating ensure operational stability in demanding environments, making it a capable commercial pool pump for consistent daily fluid circulation.
This reliable high flow pool pump is the optimal solution for global B2B wholesale distributors, regional dealers, and professional pool project contractors.
| Features | |
|---|---|
| Pump Strainer Housing Material: | Corrosion-Resistant Thermoplastic |
| Speed Control Type: | Constant speed Speed |
| Dual Voltage Supported: | NO |
| Integrated Timer Supported: | Optional |
| Motor Casing: | Premium Die-Cast Aluminum Alloy with Enhanced Heat Dissipation |
| Motor Winding: | High-Conductivity Copper Windings |

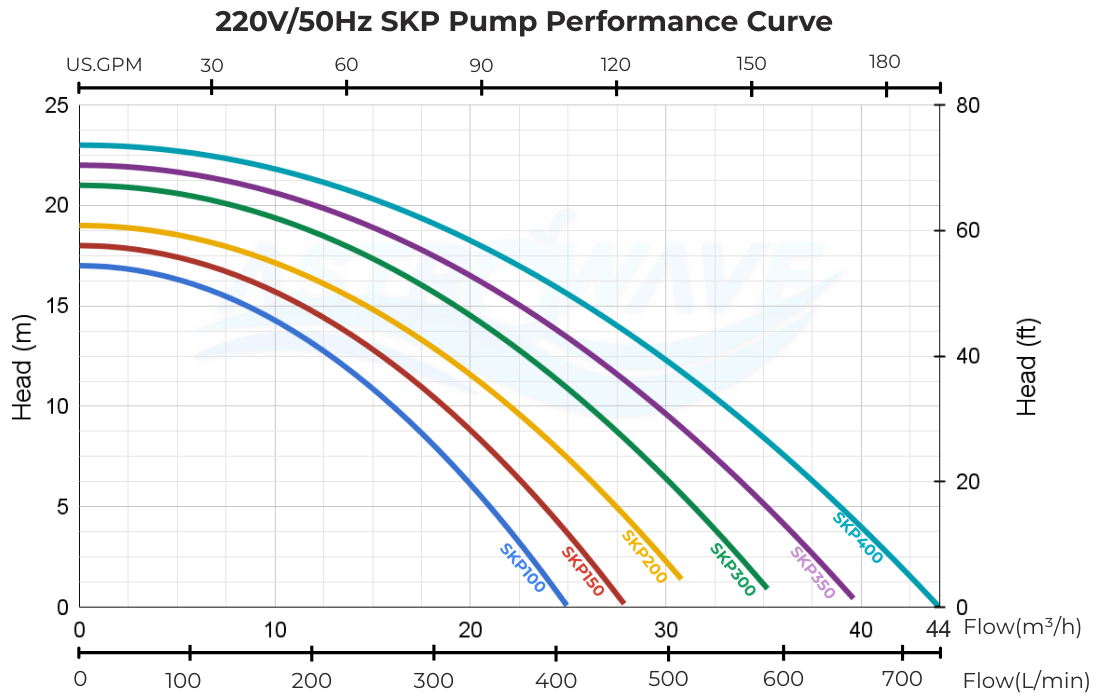

| Model | Power (KW/HP) | Voltage | Max.Flow Rate | Max. Head | |||
|---|---|---|---|---|---|---|---|
| m³/h | LPM | GPM | m | ft | |||
| SKP100 | 0.75 / 1.0 | 110V/220V | 25 | 417 | 110 | 17 | 56 |
| SKP150 | 1.1 / 1.5 | 110V/220V | 28 | 467 | 123 | 18 | 59 |
| SKP200 | 1.5 / 2.0 | 110V/220V/380V | 32 | 533 | 141 | 19 | 62 |
| SKP300 | 2.2 / 3.0 | 110V/220V/380V | 36 | 600 | 159 | 21 | 69 |
| SKP350 | 2.6 / 3.5 | 220V/380V | 40 | 667 | 176 | 22 | 72 |
| SKP400 | 3.0 / 4.0 | 220V/380V | 44 | 733 | 194 | 23 | 75 |
The highest capacity model in the SKP series is the SKP400, which operates as a 4 hp pool pump delivering a maximum flow rate of 44 cubic meters per hour and a maximum head of 23 meters.
Yes, an optional integrated timer is available. Users can set a continuous running time, and the unit will automatically shut down when that specific duration is reached.
The equipment includes imperial and metric unions measuring either 2 inches (63 mm) or 1.5 inches (50 mm), equipped with a secure lock lever.
The internal components and durable engineering plastics are designed to process water with a maximum temperature of up to 45 degrees Celsius safely.
Yes, as a direct factory pool pump offering, this series supports comprehensive commercial procurement needs with diverse voltage configurations and optional SS316 shaft upgrades.
We are a direct OEM pool pump factory in China. Astrowave Pool operates its own production facilities with a strict in-house quality control system. You are always welcome to visit our factory in person, or we can arrange a real-time WhatsApp video tour of our workshop for a convenient remote inspection.
Yes, we provide comprehensive OEM and ODM services tailored for our global B2B partners. From custom product colors and branded logos to specific carton packaging designs, our flexible production lines can accommodate your needs. As an experienced swimming pool equipment manufacturer, we focus on delivering consistent quality to help your business succeed in local markets.
As a trusted China pool equipment manufacturer and supplier, Astrowave Pool Products specializes in complete filtration and circulation systems. We focus on producing high-demand commercial and residential core products, including:
With over 22 years of export experience, we proudly supply premium pool equipment to distributors, pool builders, and dealers worldwide, including the Middle East, India, Southeast Asia, Africa, the Americas, and Southern Europe.
